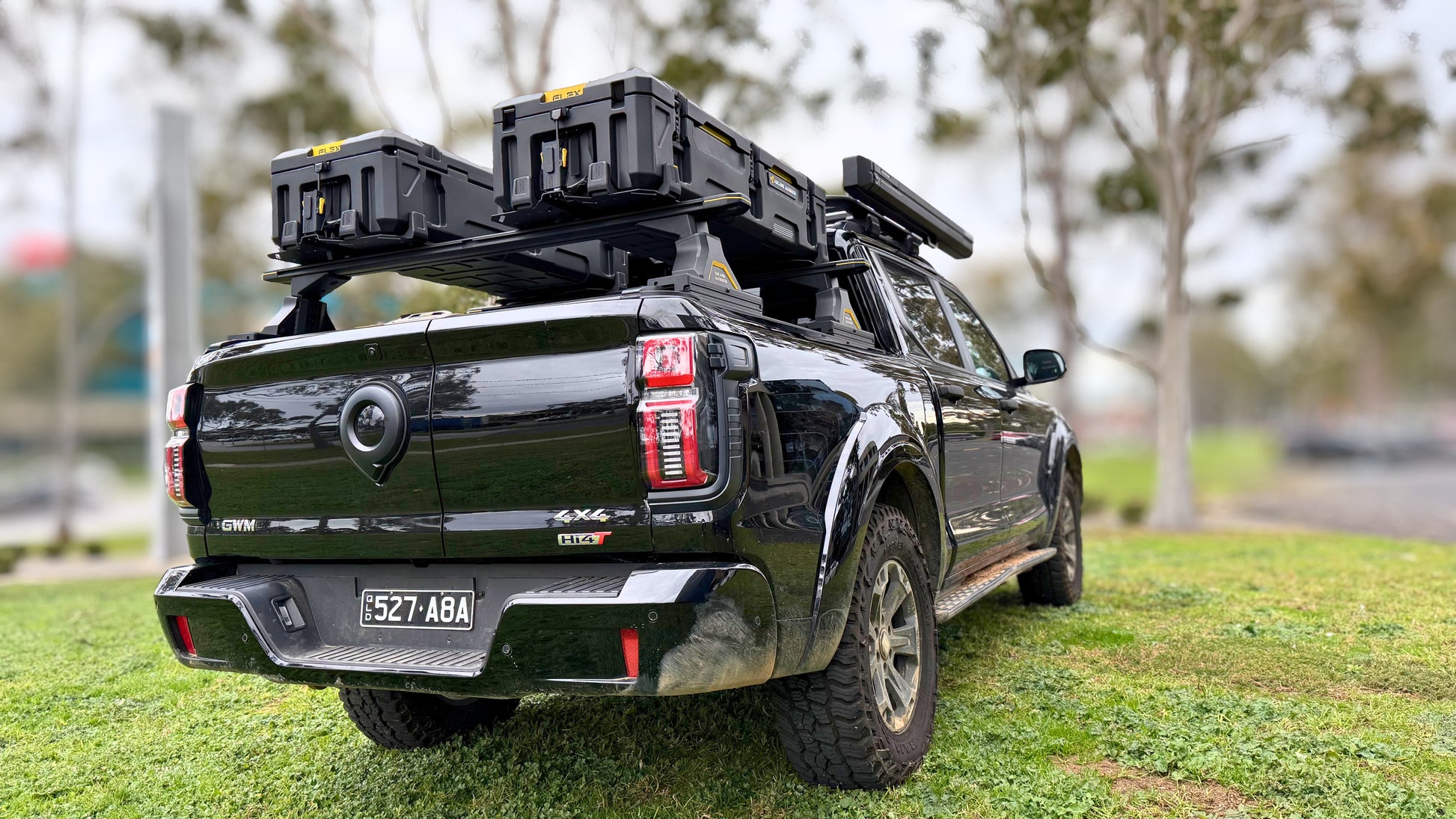

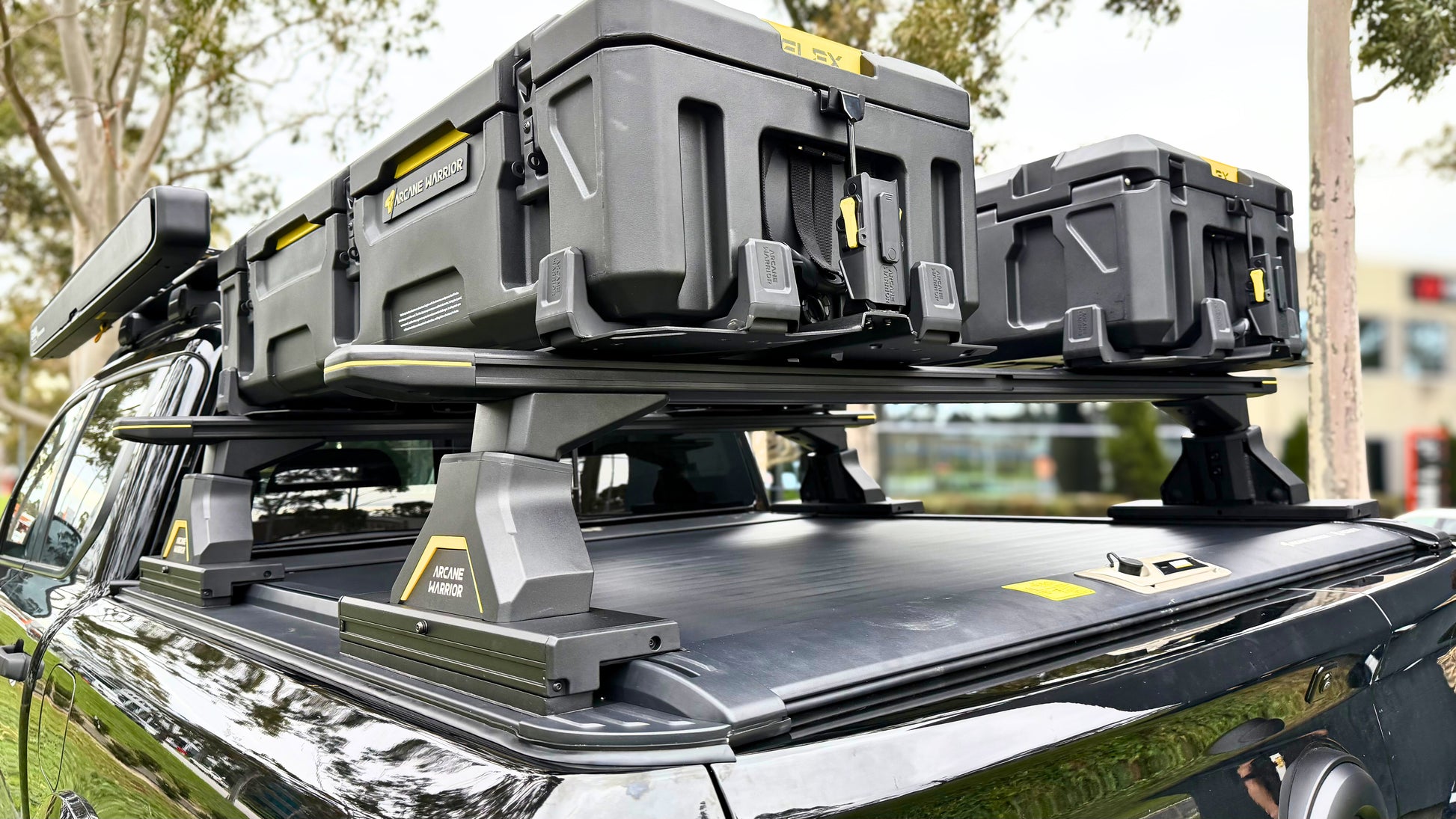

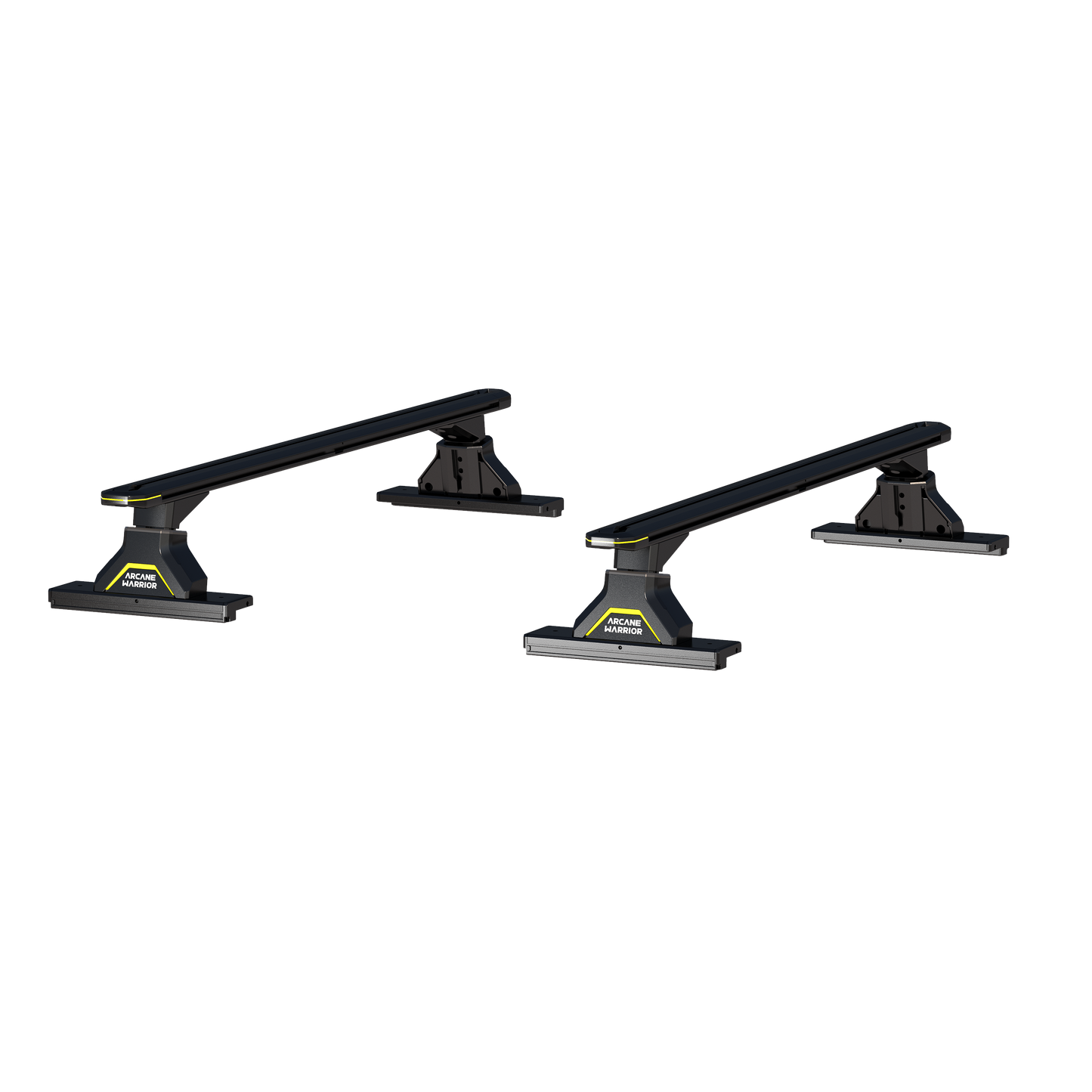

RIDGE CARGO RACK WITH CROSS BARS - MID

The Best Looking & Strongest Tub Cargo Rack System

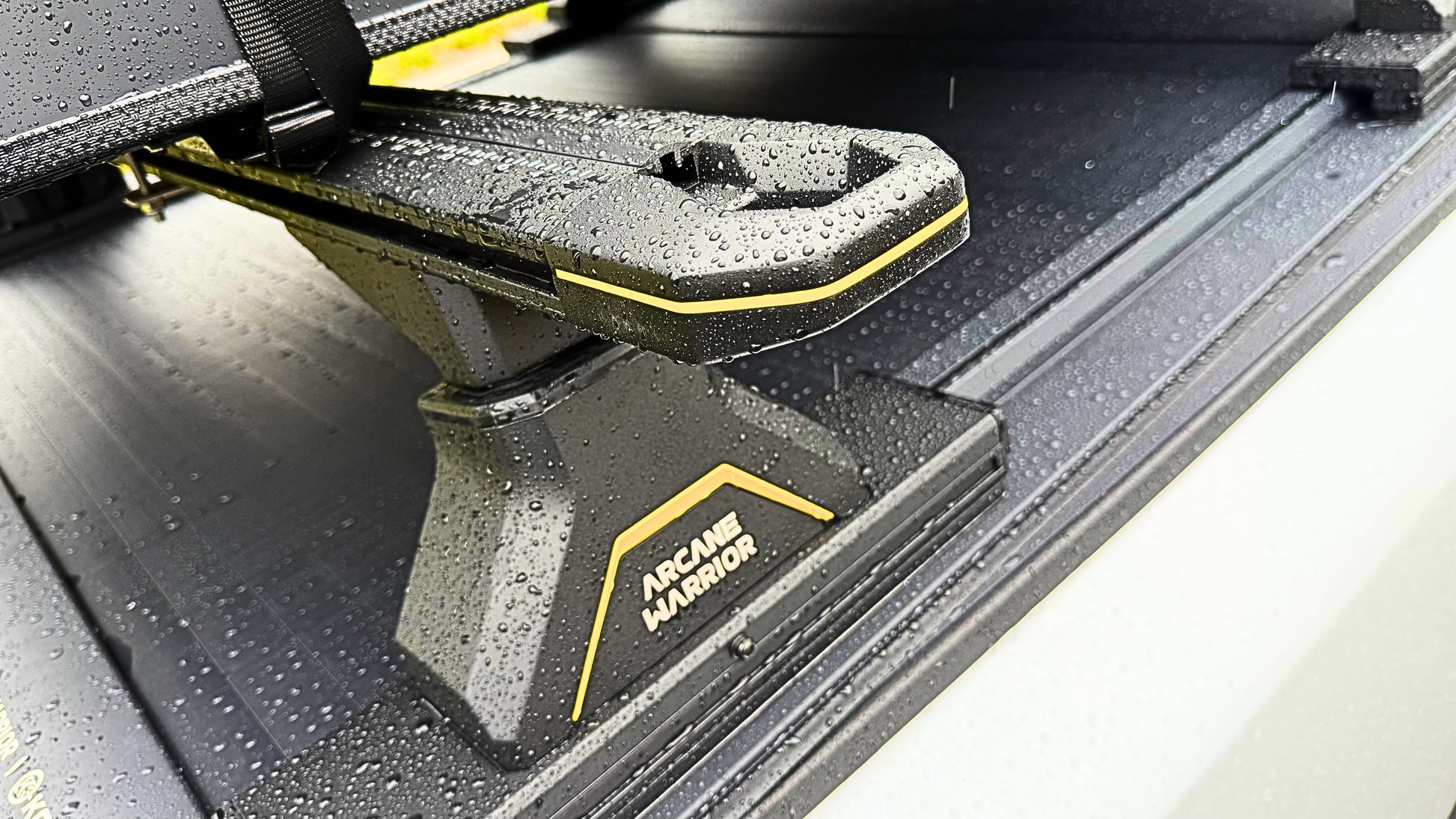

• Construction of the air craft grade cast aluminum base and pedestal

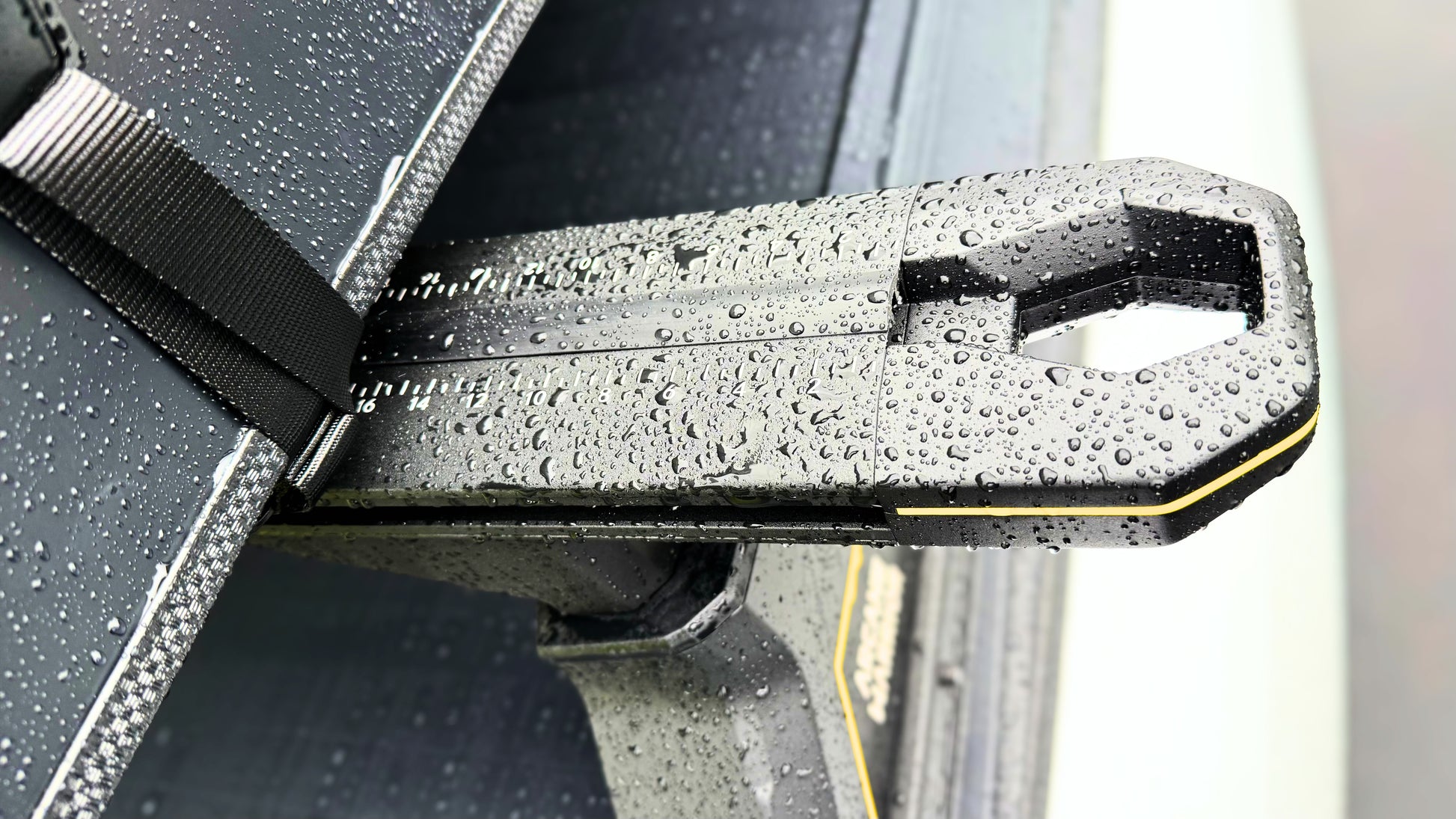

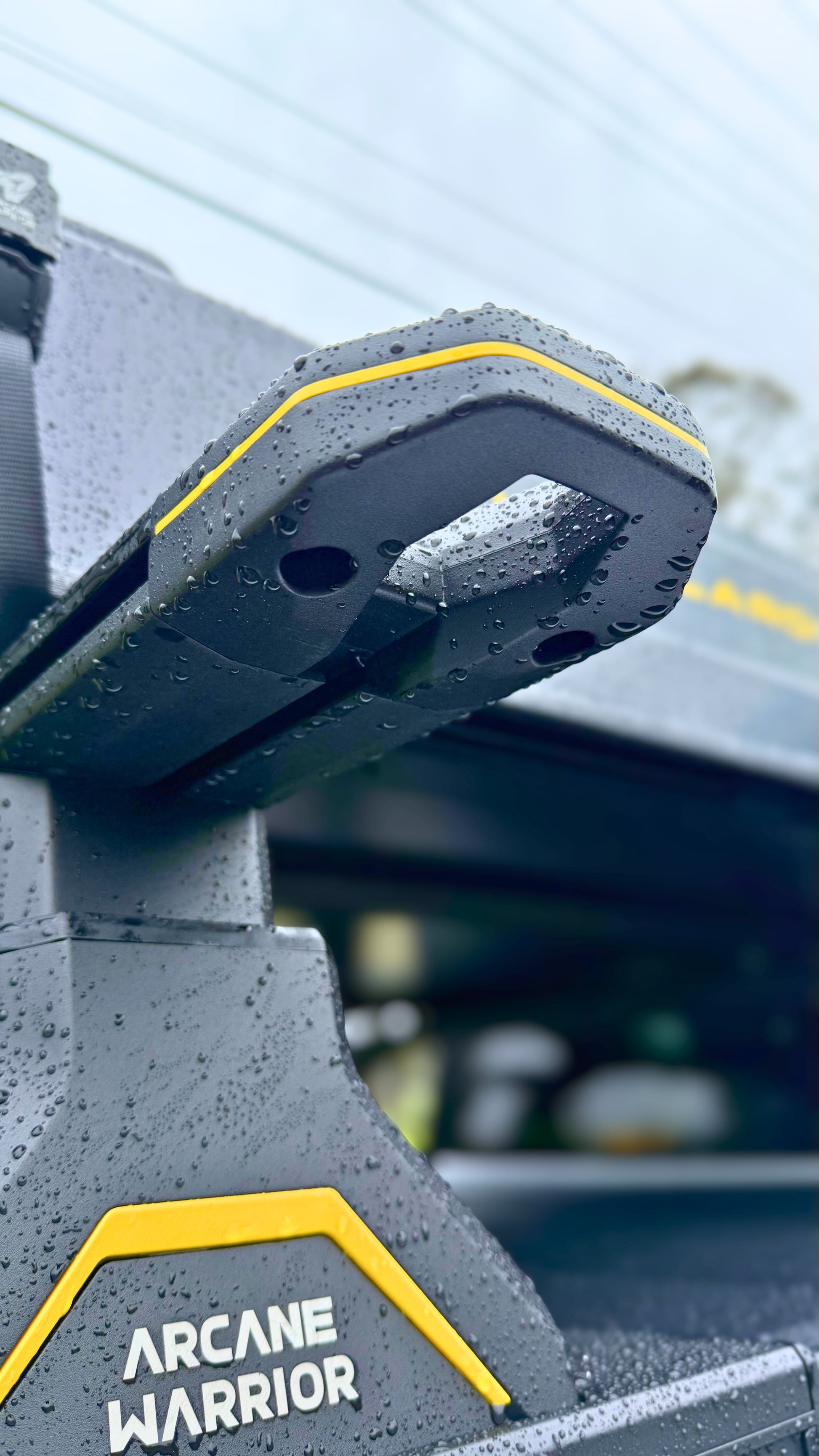

• Strongest cross bar system with distance ruler; cast end hook
• Height adjustable to suit your needs

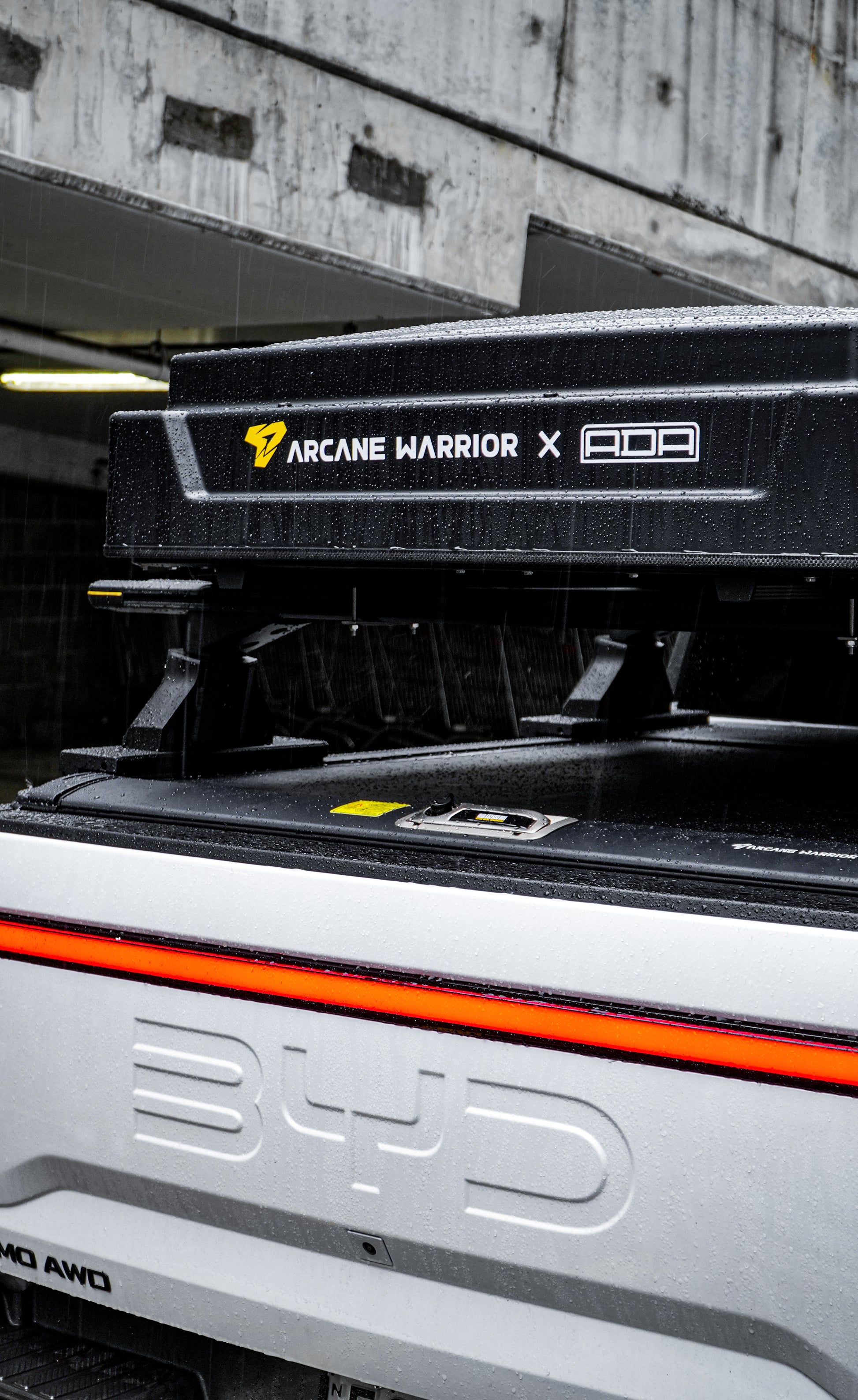

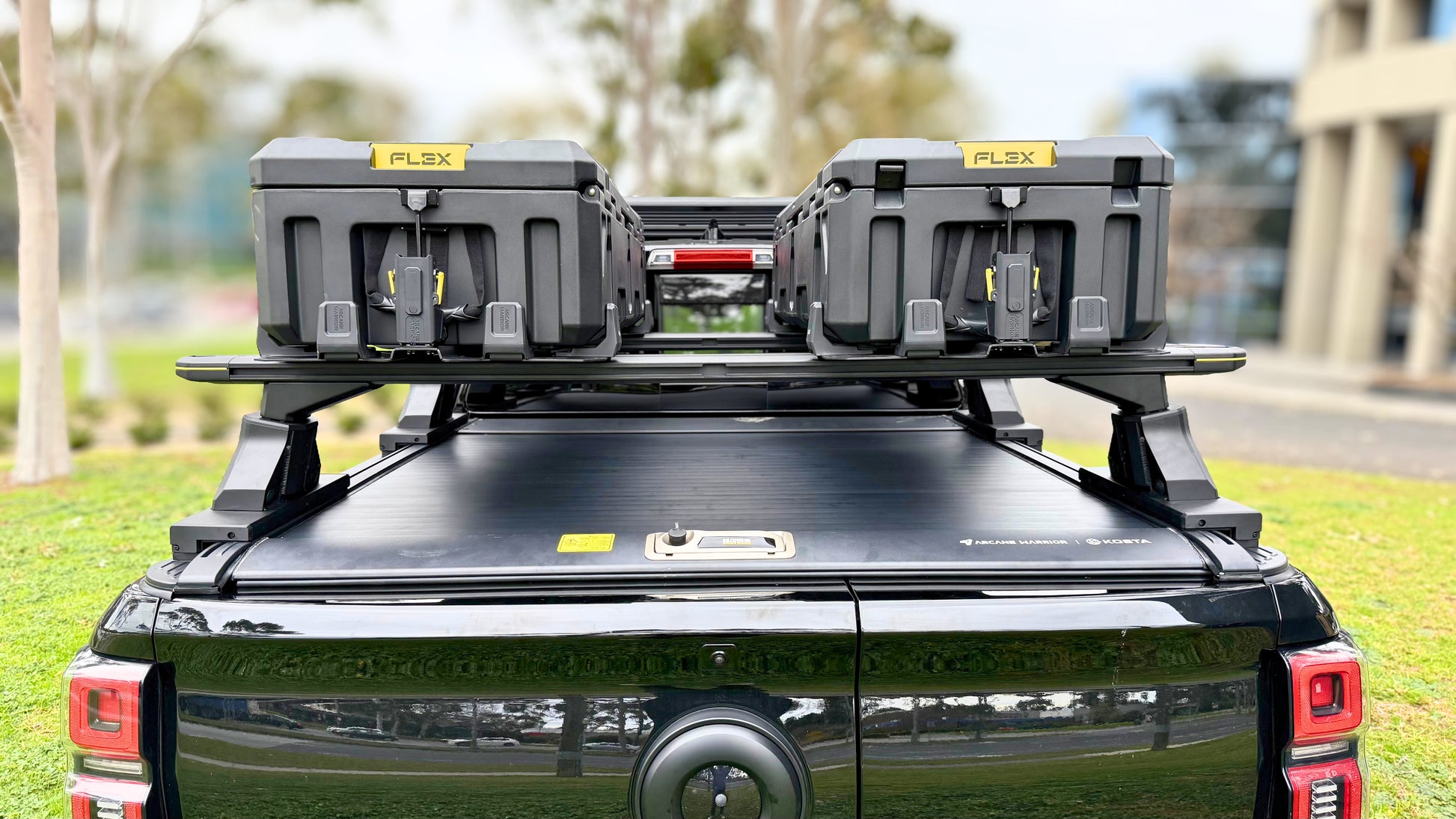

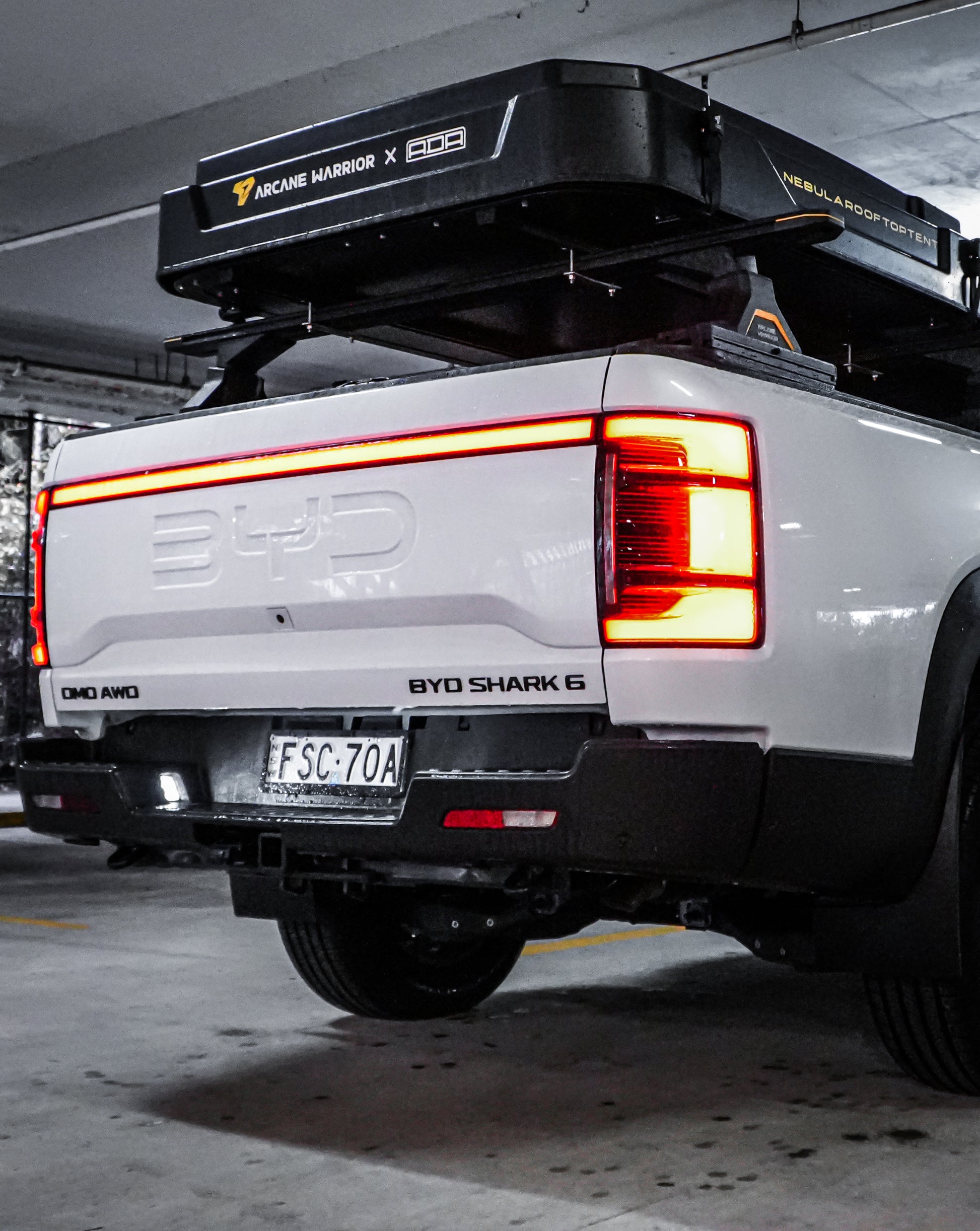

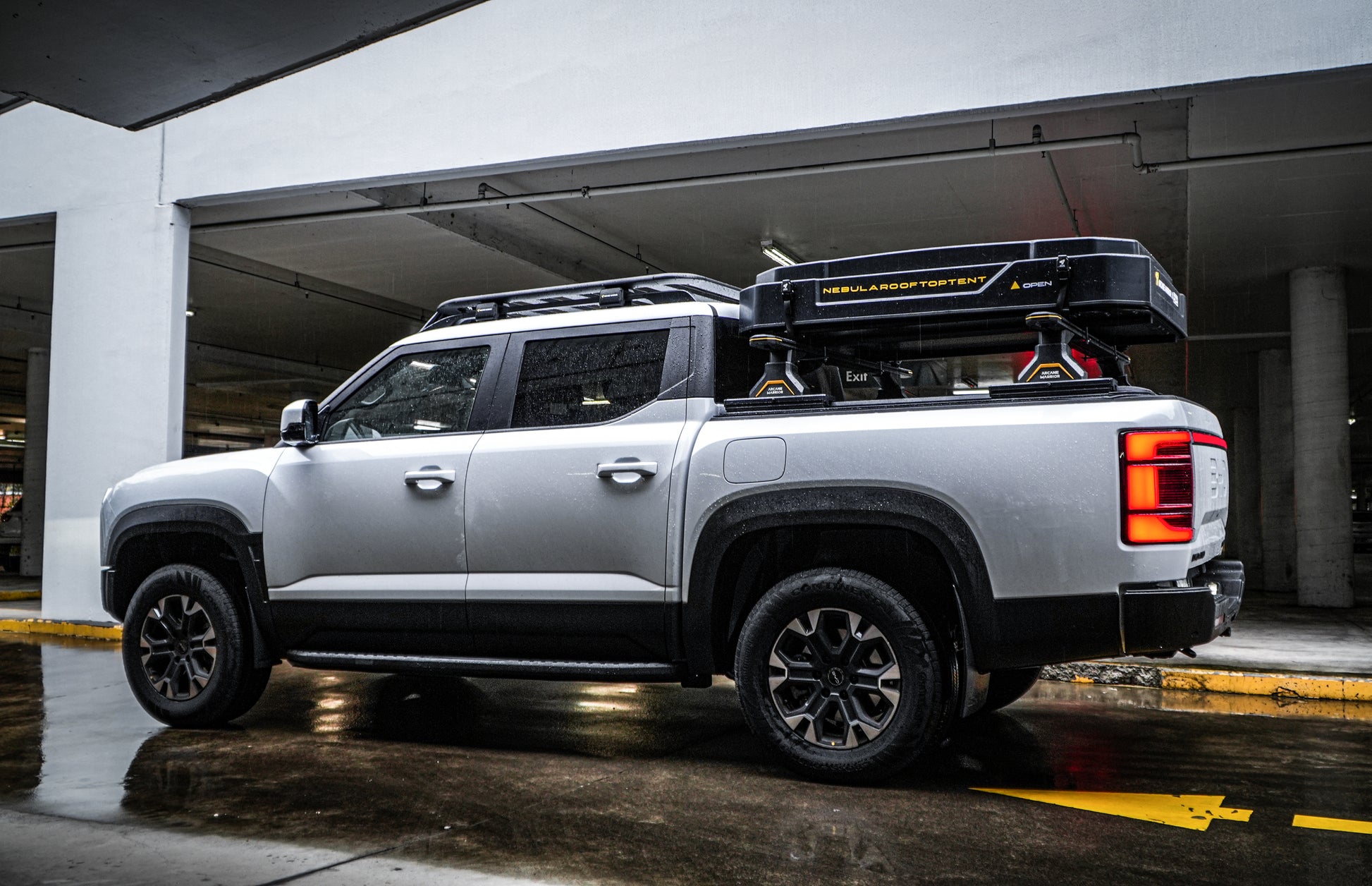

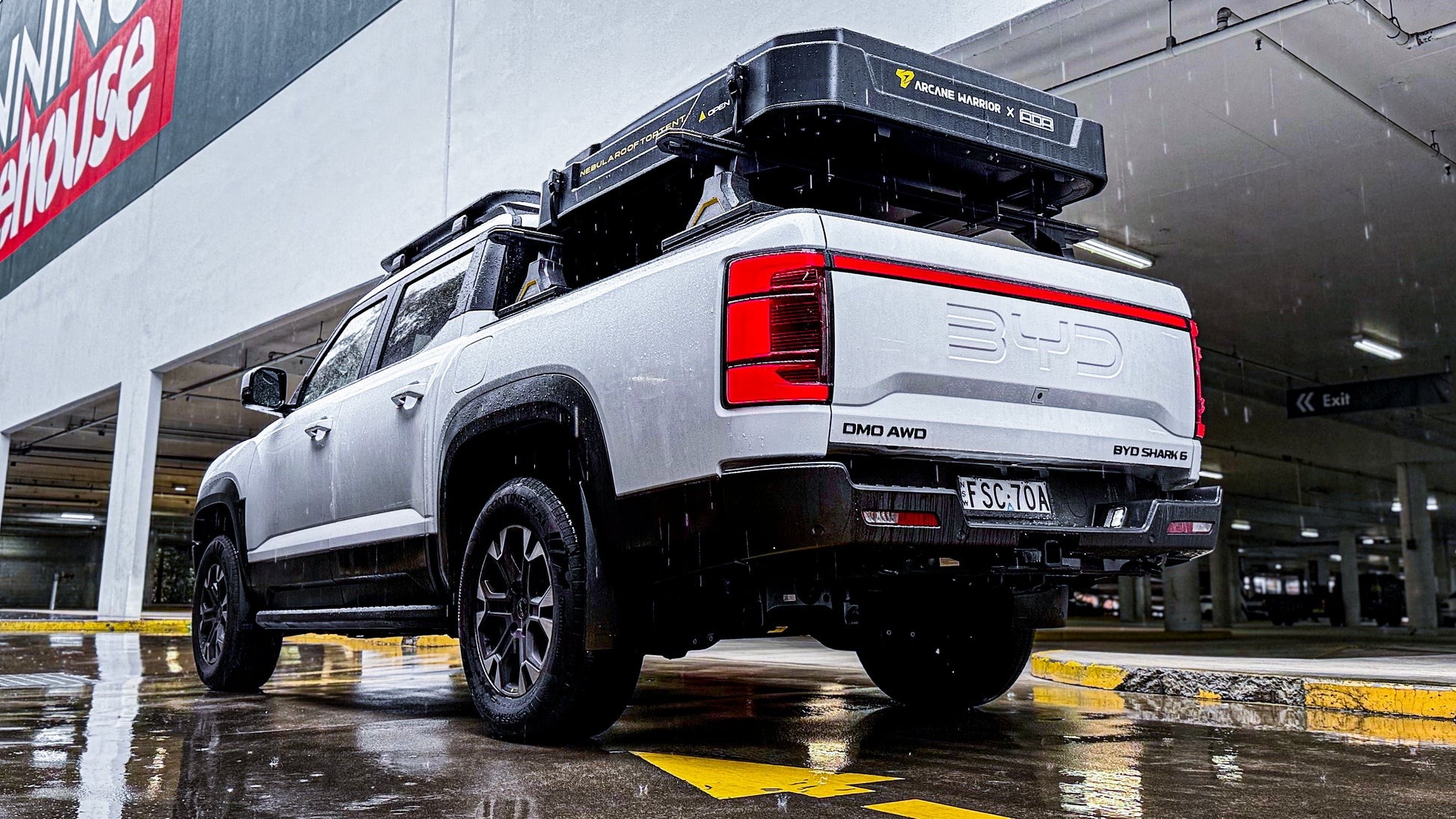

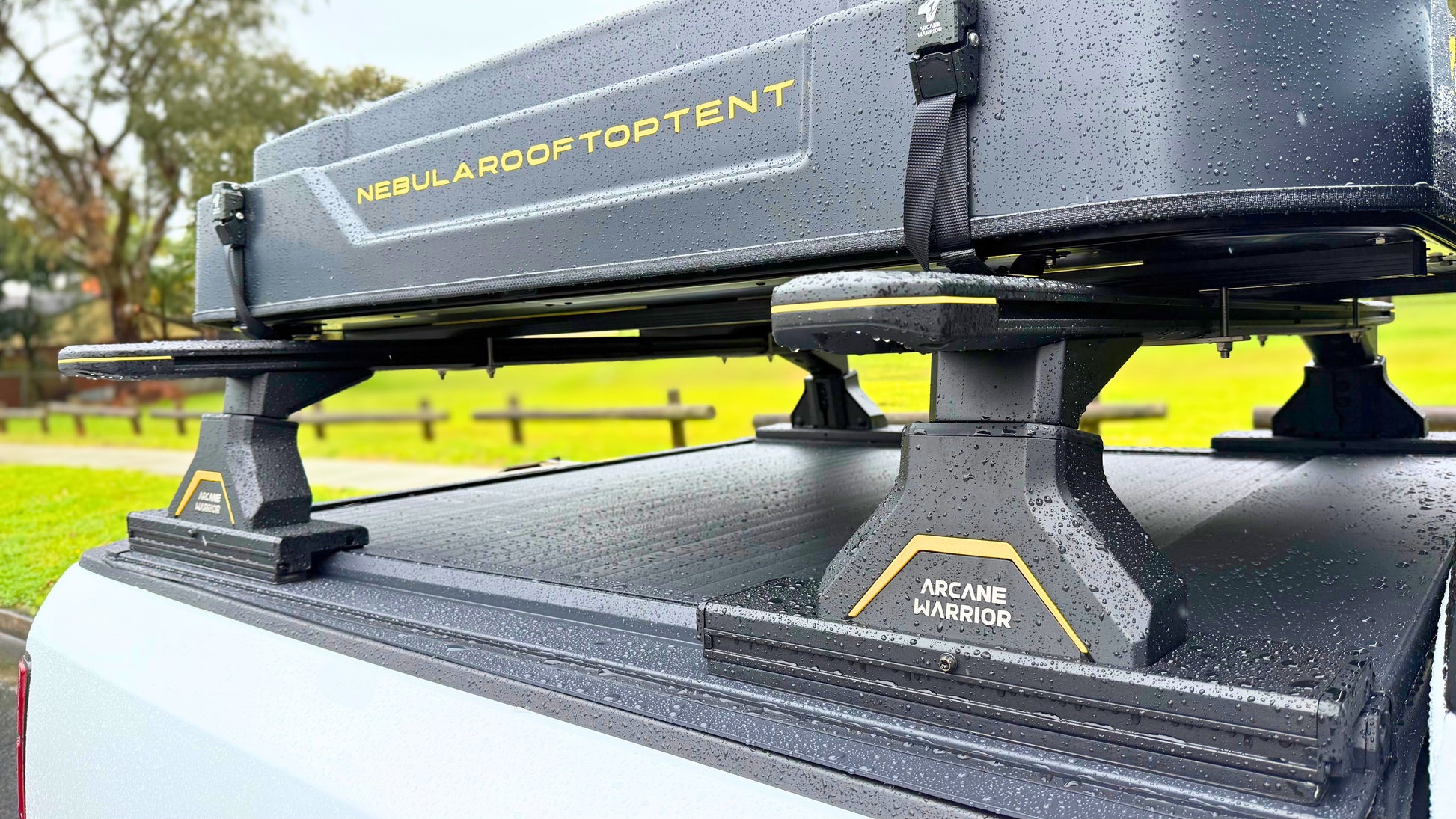

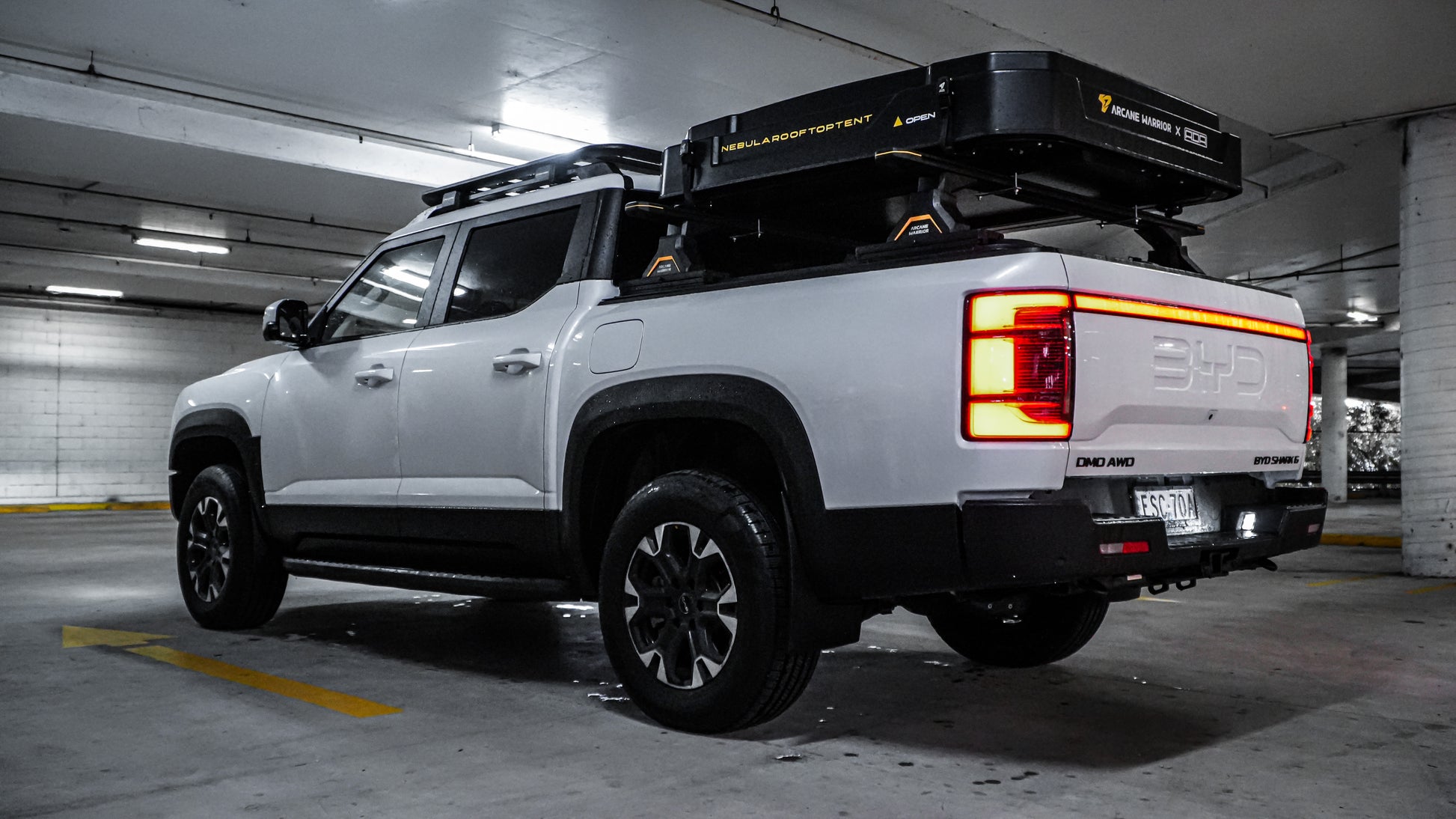

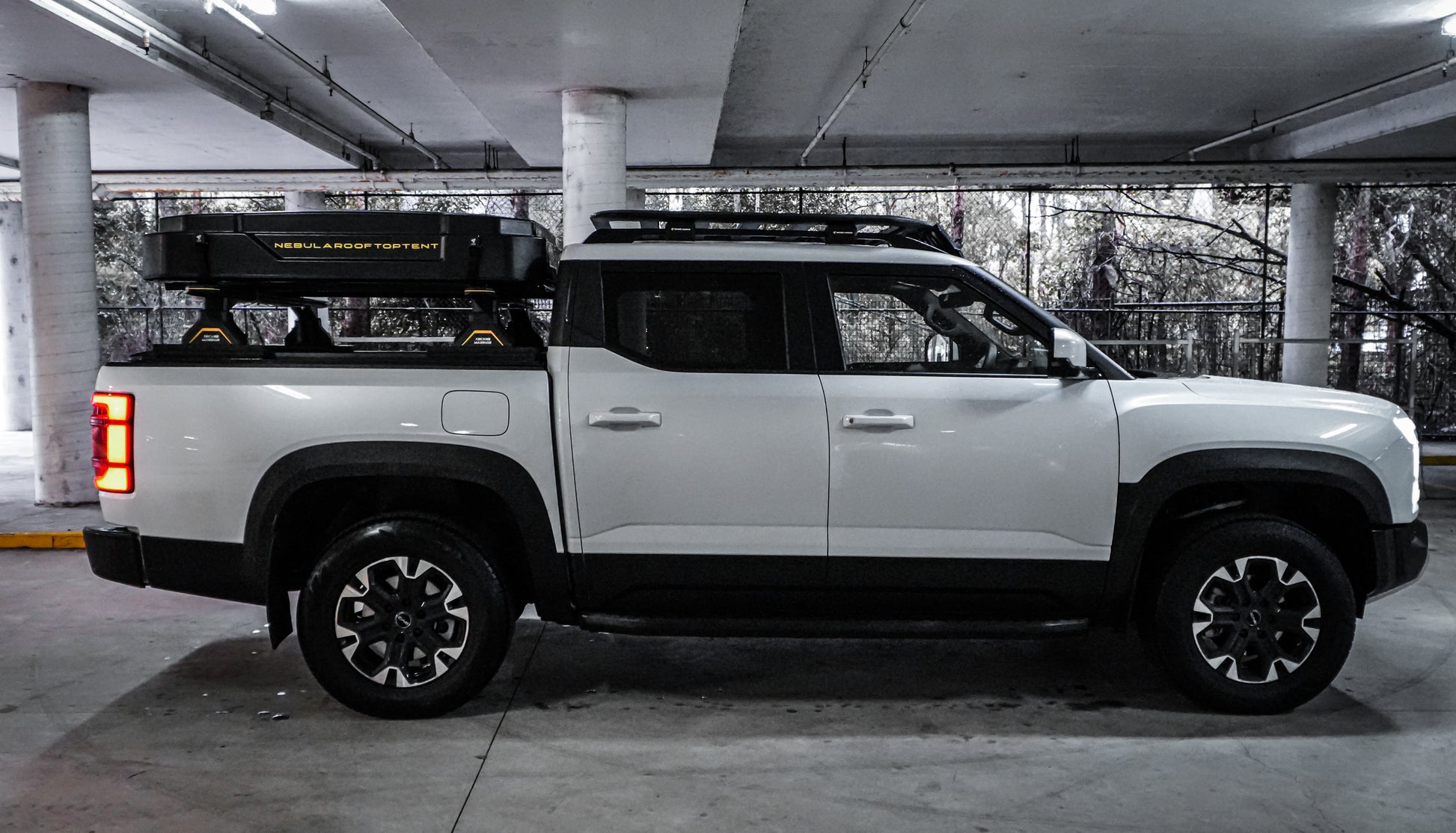

• Perfect for your storage box or roof top tent whilst retain the minimum height clearance
• To mount the Ridge system, the AW manual roller shutter must be installed prior

Base Size: 418*227*225mm
Crossbar AL: 1665*106*43mm
Crossbar AXL: 1780*106*43mm
Product weight:
Base: about 18Kg (total 4)
Crossbar AL: about 12Kg (total 2)
Crossbar AXL: about 12.9Kg (total 2)
Material process:
Base: aluminum die-casting, aluminum profile, high-strength nylon injection molding
Crossbar: aluminum profile, high-strength nylon injection molding
Mounting bracket: aluminum profile, carbon steel
Load capacity:
Base-static load: 380Kg｜On-road load: 250Kg｜Off-road load: 150Kg
Crossbar-Static load：380Kg｜On-road load：250Kg｜Off-road load：150Kg
